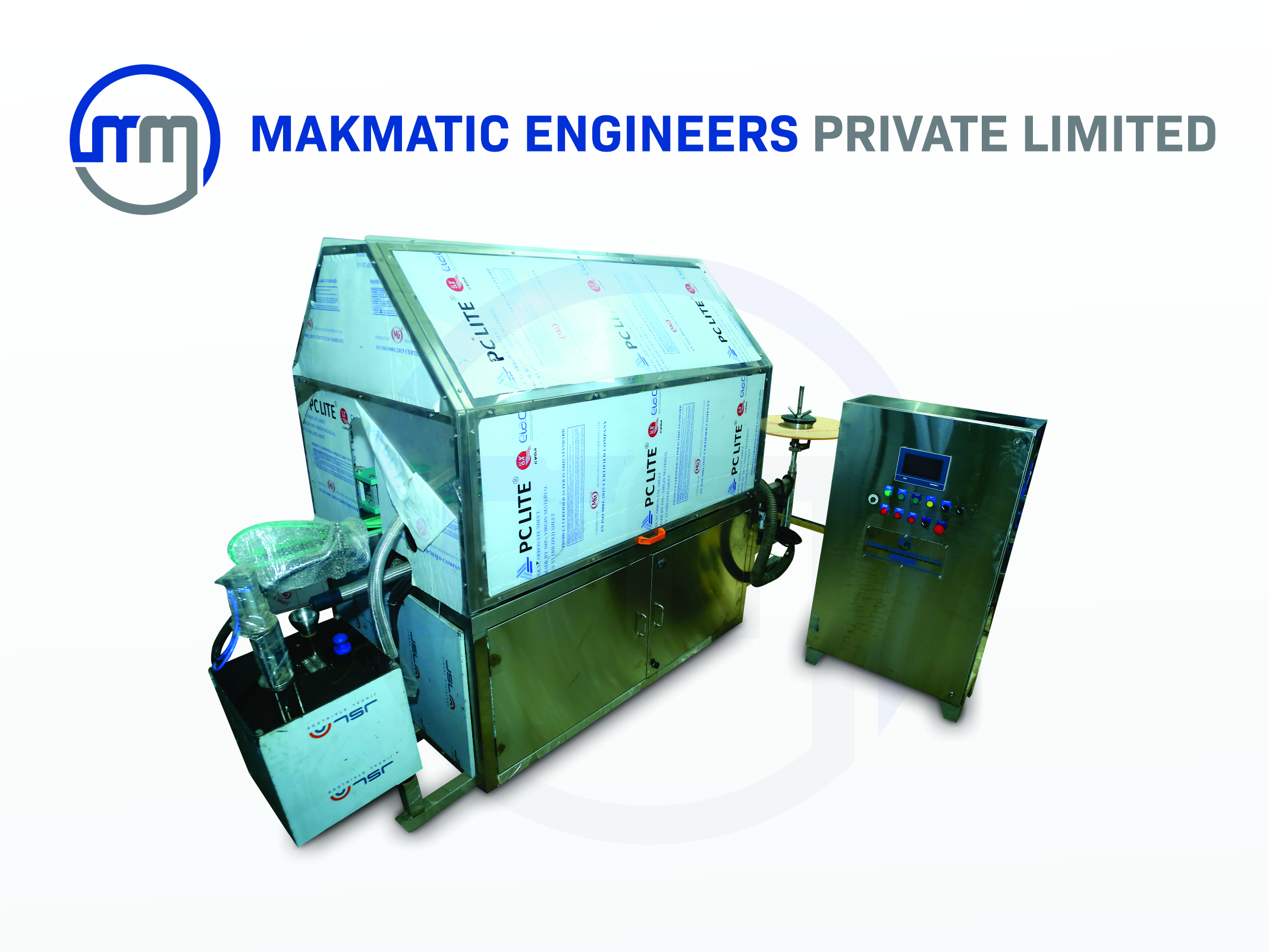

Automatic BOPP Labelling Machine
This Automatic BOPP Labelling Machine has the capability to label at high-speed with precision using BOPP (Biaxially Oriented Polypropylene) roll-fed labels. The machine is suitable in bottled water and soft drinks bottling or beverage packaging ensuring smooth label application to have tight adhesion and wrinkle free label. It facilitates complete wrap labeling on PET and the other cylindrical bottles. It reduces wastage, eliminates downtimes and improves production, being built with stainless steel frame and servo-driven controls. Whether it is small batches or large-scale operations, this machine maintains consistency in your packaging, and makes your packaging ready to go to retail.
- High-speed BOPP roll-fed labeling with precise cutting and gluing
- Servo-controlled system for accurate label placement
- Supports PET, HDPE, and glass bottle formats
- Energy-efficient hot melt glue system
- Built for 24x7 operation with minimal maintenance needs
Product Specification
120 BPM
150 BPM
200 BPM
250 BPM
300 BPM
120 BPM
| Particulars | Technical Specifications |
|---|---|
| Capacity | 7200 bottles per hour |
| Efficiency | 95% on the rated capacity |
| Bottle Size | 200 ml up to 1000 ml (change part at extra) |
| Power Consumption | 9-10 Kw |
| Construction | Stainless steel |
| Feed System | One bottle at a time with cavity matching |
| Glue System | In-Built with vacuum drum |
| Programming | tri-o-block programming |
| Electric Panel | Separate Panel in SS |
| Touch Panel | In-built on the electric panel |
| Glue System | Mesh system for high-speed accuracy |
| Switch Gears | Schneider |
| Cutting Assembly | Sharp precision cut with 70-80 microns of chrome |
| Operation | Double star system |
| Make | Makmatic Engineers Private Limited |
150 BPM
| Particulars | Technical Specifications |
|---|---|
| Capacity | 9000 bottles per hour |
| Efficiency | 95% on the rated capacity |
| Bottle Size | 200 ml up to 1000 ml (change part at extra) |
| Power Consumption | 9-10 Kw |
| Construction | Stainless steel |
| Feed System | One bottle at a time with cavity matching |
| Glue System | In-Built with vacuum drum |
| Programming | tri-o-block programming |
| Electric Panel | Separate Panel in SS |
| Touch Panel | In-built on the electric panel |
| Glue System | Mesh system for high-speed accuracy |
| Switch Gears | Schneider |
| Cutting Assembly | Sharp precision cut with 70-80 microns of chrome |
| Operation | Double star system |
| Make | Makmatic Engineers Private Limited |
200 BPM
| Particulars | Technical Specifications |
|---|---|
| Capacity | 12000 bottles per hour |
| Efficiency | 95% on the rated capacity |
| Bottle Size | 200 ml up to 1000 ml (change part at extra) |
| Power Consumption | 12-13 Kw |
| Construction | Stainless steel |
| Feed System | One bottle at a time with cavity matching |
| Glue System | In-Built with vacuum drum |
| Programming | tri-o-block programming |
| Electric Panel | Separate Panel in SS |
| Touch Panel | In-built on the electric panel |
| Glue System | Mesh system for high-speed accuracy |
| Switch Gears | Schneider |
| Cutting Assembly | Sharp precision cut with 70-80 microns of chrome |
| Operation | Double star system |
| Make | Makmatic Engineers Private Limited |
250 BPM
| Particulars | Technical Specifications |
|---|---|
| Capacity | 15000 bottles per hour |
| Efficiency | 95% on the rated capacity |
| Bottle Size | 200 ml up to 1000 ml (change part at extra) |
| Power Consumption | 12-14 Kw |
| Construction | Stainless steel |
| Feed System | One bottle at a time with cavity matching |
| Glue System | In-Built with vacuum drum |
| Programming | tri-o-block programming |
| Electric Panel | Separate Panel in SS |
| Touch Panel | In-built on the electric panel |
| Glue System | Mesh system for high-speed accuracy |
| Switch Gears | Schneider |
| Cutting Assembly | Sharp precision cut with 70-80 microns of chrome |
| Operation | Double star system |
| Make | Makmatic Engineers Private Limited |
300 BPM
| Particulars | Technical Specifications |
|---|---|
| Capacity | 18000 bottles per hour |
| Efficiency | 95% on the rated capacity |
| Bottle Size | 200 ml up to 1000 ml (change part at extra) |
| Power Consumption | 14-16 Kw |
| Construction | Stainless steel |
| Feed System | One bottle at a time with cavity matching |
| Glue System | In-Built with vacuum drum |
| Programming | tri-o-block programming |
| Electric Panel | Separate Panel in SS |
| Touch Panel | In-built on the electric panel |
| Glue System | Mesh system for high-speed accuracy |
| Switch Gears | Schneider |
| Cutting Assembly | Sharp precision cut with 70-80 microns of chrome |
| Operation | Double star system |
| Make | Makmatic Engineers Private Limited |
